Grabbing Conventional Channels / Frequencies - Using the RadioReference.com RR Database select a State and County to display the radio system data you are looking to capture. Scroll your web browser up or down to display the frequency or talkgroup ID data. See the example page below … STEP 1: Highlight the header row containing the column headings plus the desired rows of frequency data (see below) by dragging your mouse from the upper left corner of the row section to the lower left corner of the row section, completely encompassing all the rows. Depending on your browser you can then select Edit, Copy or type Ctrl + C or Ctrl + Ins to copy the data to the Windows clipboard. The header row only has to be captured once during a series of copies and pastes from the same group. NOTE: The highlighted area can span multiple “blocks” of data so in the example below you could have highlighted both the “Emergency Medical Communications Center” frequencies AND the “Bethel, Town of” frequencies in one copy action. In fact you can highlight ALL the frequencies for “Fairfield County” on the entire web page in one copy action.

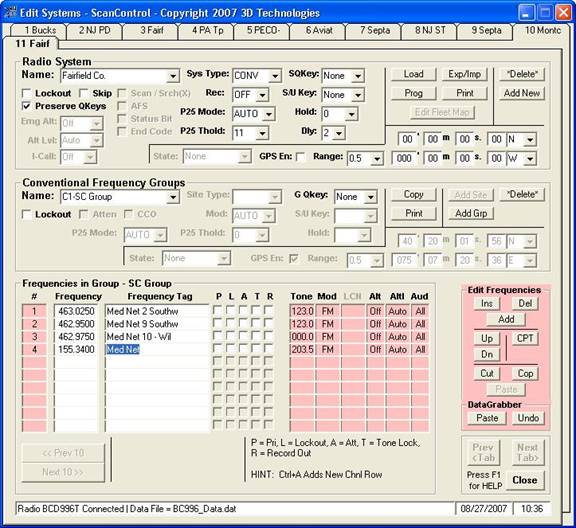

STEP 2: Open the ScanControl System Editor and click the Paste / Append button. The DataGrabber has pasted the data rows (below) and accounted for the frequency, alpha tag, PL or CTCSS tone and modulation values found in the data rows. If the rows do not contain any of these data elements they will be defaulted during the Paste / Append. You can use the Undo button to reverse the Paste / Append action and return the Group data back to what it was before the Paste / Append.  That's all there is to it! To see this method in action you should view the demonstration videos we've prepared (see below). Each 2 to 4 minute video demonstrates the DataGrabber in actual use with each different type of scanner editor found in ScanControl. (Note: Turn your PC speaker volume up to hear the video narration. Flash video player Version 7 or higher required. If you don't have it you will be prompted for an automatic download.) Bank Style Radios (BC245, BCT8, BC895, BC898, BC780, BC250D, BC296D, BC785D, BC796D, PRO-2052)
Dynamic Memory Archiecture(1) Radios (SC230, BC246T, BR330T, BCD396T)
Dynamic Memory Archiecture(2) Radios (BCD996T, BCT15)
|
|
